Installing the radial shaft seal for the right-hand output shaft on the electric machine transmission

NOTE: TECHNICAL INFORMATION
Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.

Install the radial shaft seal (2) using the installation protection ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

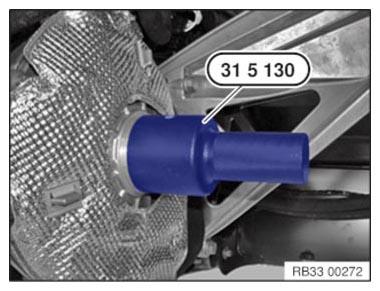

Drive in the radial shaft seal to the stop using special tool 0 493 539 (31 5130).

Courtesy of BMW OF NORTH AMERICA, INC.
