Removing the seat cover with cushion

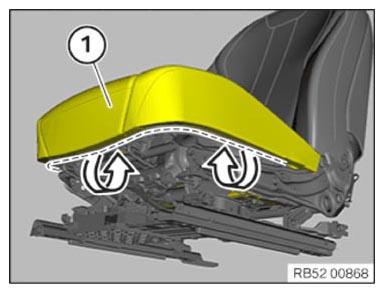

- Position the seat cover with cushion (1) correctly on the seat mechanism.
If necessary, insert the associated wiring harness.
- Attach the seat cover in marked area in the seat mechanism in arrow direction.
NOTE:
Perform the steps on the right and left side.
- Clip in clips (1).
- Clip in the seat cover (1).
- For equipment specification with seat heating: Connect plug connection (2) and lock.
