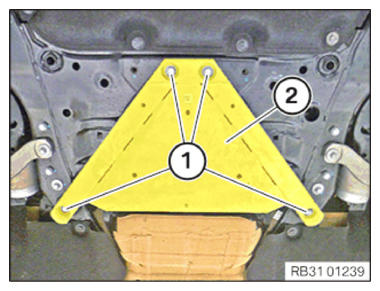

Installing the brace on the front subframe

Position brace (2).
Replace screws (1).
Parts: Screws

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Brace on the front subframe
M10x35 Replace screw.	Joining torque	56 Nm
	Angle of rotation	90°

G15474170

Courtesy of BMW OF NORTH AMERICA, INC.
