Installing the rear bumper cover

• Remove the bumper cover (1) with the help of a support person.

  Connect and lock the connector for rear fog lights and if necessary the ultrasonic sensors.

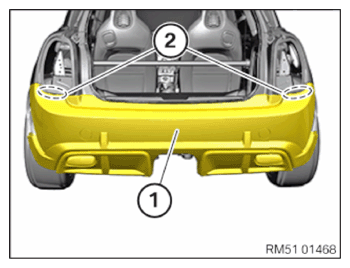

• Engage the bumper cover (1) at the detents in the area (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

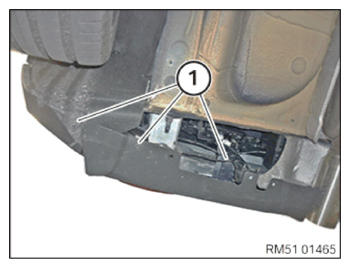

• Tighten screws (1) left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

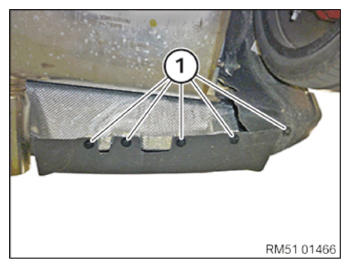

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING UNDERBODY PLANKING, REAR RIGHT .
• Refer to INSTALLING THE REAR WHEEL ARCH TRIM .
• Refer to INSTALLING THE LEFT AND RIGHT TAIL LIGHTS .
