52 18 Front Seat, Sensor, Manual
>>
52 18 198 Removing and installing or replacing rear panel on left or right front seat backrest (Cooper 2-door hatchback models, 2020-2023)
>>
Remove the rear panel from the front seat backrest
Remove the rear panel from the front seat backrest

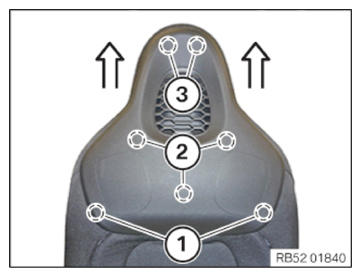

Carefully unclip the rear panel (4) at the marked points (1) using the special tool
2 298 505
.
Carefully unclip the rear panel (4) at the marked points (2) using the special tool
2 298 505
.
Feed out the rear panel (4) in arrow direction from the marked points (3).
