Installing the electrical vacuum pump

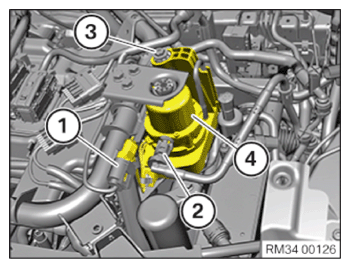

• Install the electrical vacuum pump (4).
• Replace the screw (3).

  Parts:  Screw

• Insert screws (3) and tighten them.
  TIGHTENING TORQUES SPECIFICATION



  Electric vacuum pump to holder
  M6 Replace screws.	8 Nm

• Position snap fastener (2) and lock.
• Connect the plug connection (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ACOUSTIC COVER .
