35 40 001 Removing and installing or replacing accelerator pedal module (Cooper 4-door hatchback and Cooper 2-door hatchback, 2020-2023)

Removal:

Take off cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Lift the accelerator pedal module (1) approx. 2 cm at the bottom to feed it out of the holder (2).

Push the accelerator pedal module (1) out of the holder (3) in the arrow direction (diagonally upwards).

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove accelerator pedal module.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of damage!

Do not pinch the wiring harness between the holder (2) and accelerator pedal module!

Install cables "invisibly"!

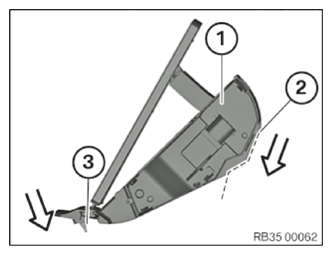

First insert the accelerator pedal module (1) into the holder (2) at the top in the arrow direction.

Then align in holder (3) at the bottom.

There is a positioning pin on the bottom of the accelerator pedal module that enables correct alignment.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and tighten the hexagon socket bolt.

Tightening torque 35 40 1AZ .

Insert cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
