71 60 700 Removing and installing/replacing trailer tow hitch control unit (Cooper 4-door hatchback and Cooper 2-door hatchback, 2020-2023)

Preliminary work needed:

• Remove RIGHT TRUNK WHEEL ARCH PANEL .

Removal:

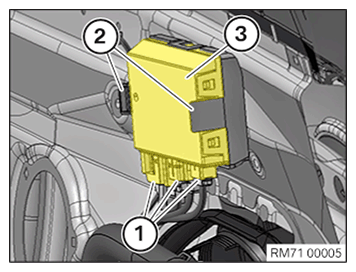

Unlock plug connections (1) and disconnect.

Loosen the retaining lugs (2) and remove the control unit for the trailer tow hitch (3) from the holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert the control unit for the trailer tow hitch (3) into the holder and lock it on the retaining lugs (2).

Connect and lock the plug connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRUNK WHEEL ARCH PANEL, RIGHT .
