52 13 100 Replacing the Bowden cable of the left seat rail (Cooper 2-door hatchback models, 2020-2023)

Preliminary work needed:

• Remove front seat driver's seat
• Remove OUTER COVER ON FRONT SEAT .

Removal:

Release screw (1) on seat (4).

Guide the Bowden cable with adjustment mechanism (2) out of the backrest adjustment (3).

Courtesy of BMW OF NORTH AMERICA, INC.

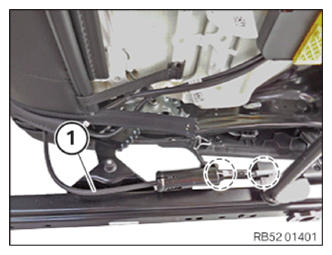

Unclip the Bowden cable (1) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip in the Bowden cable (1) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Position Bowden cable with adjustment mechanism (2) on backrest adjustment (3).

Tighten screw (1) on seat (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install OUTER COVER ON FRONT SEAT .
• Install front seat driver's side
