52 13 031 Remove and install/replace backrest adjustment lever on left or right front seat (Cooper 2-door hatchback models, 2020-2023)

Removal:

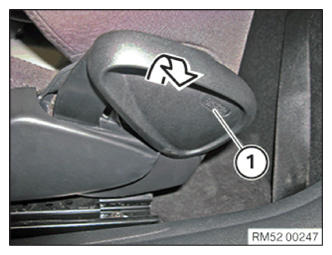

Shift lever (1) upwards and feed out outwards.

G15442496Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

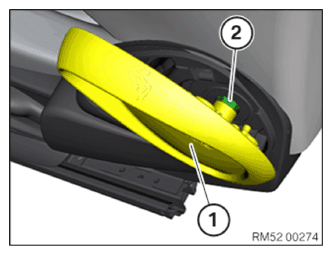

Place lever (1) on shaft (2) and feed in downwards into seat trim.

G15442497Courtesy of BMW OF NORTH AMERICA, INC.
