Installing undershield on right

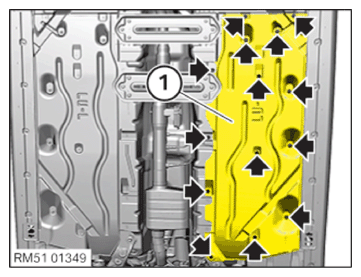

- Position the undershield (1) correctly.
- Tighten all bolts and nuts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Undershield, side | ||
|---|---|---|
| Hexagon screw | Tightening torque | 2.6 Nm |
TIGHTENING TORQUES SPECIFICATION
| Undershield, side | ||
|---|---|---|
| Plastic nut | Tightening torque | 2.6 Nm |
Follow-up work
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
