51 41 081 Replacing armrest on left or right front door trim panel (Cooper 4-door hatchback models, 2020-2023)
Special tools required:
Preliminary work needed:
- Remove front DOOR TRIM PANEL .
NOTE:
The armrest is only welded to the door trim panel when initially installed. The armrest is screwed on when installed for the second time. If necessary, release screws instead of welding spots.
Removal:

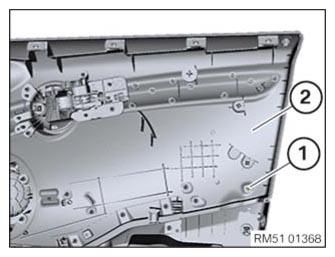

Drill out the welding pin (1) or release screw (1) (depending on equipment specification).
IMPORTANT:
Risk of damage!
Exclusively drill up to the base of the door trim panel (2) to prevent damage to the contact surface.
Exclusively drill up to the base of the door trim panel (2) to prevent damage to the contact surface.
Remove welding residue on the door trim panel (2) using a scalpel (for heavy duty use).

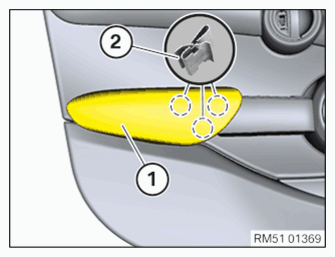

Loosen and remove the armrest (1) from the clamps (2) using special tool 2 298 505 .
Installation:

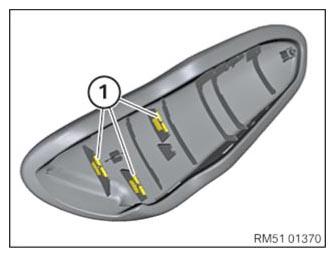

Check clamps (1); they must not be damaged or missing.
Position the armrest on the door trim panel (1) and engage in the clamps (2).
Use the screw (1) to secure the armrest to the door trim panel (2).
Required reworking:
- Install front DOOR TRIM PANEL .
