41 33 730 Replace Girder For Left Cross Connection Rep-Rep-RAF5641-4133730 - V.4 (Cooper 4-Door Hatchback And 2-Door Hatchback, 2020-2023)

Read contents of BODY, GENERAL .

For stripping and rebuilding operations, see the surrounding texts on KSD CD (FRU number 41 33 730).

Preliminary work needed:

• Remove CROSS CONNECTION .
• Remove "LEFT HEADLIGHT STAND ".

Removal:

Lift out expanding rivet (1) and remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

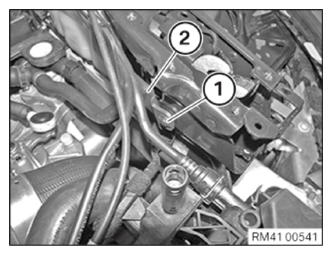

Install support (2) for cross connection. Fit all screws.

4 Tighten screws (1). Tightening torque 41 33 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 41 33 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (4) together with hood seal. Tighten screw (3).

Attach expanding rivet (1) and clip (2).

Fit coupling (5) on cross connection support.

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (2) and secure with expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

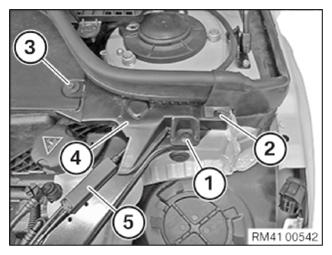

Release expanding rivet (1) and clip (2).

Undo screw (3) and place cover (4) with hood seal to one side.

Release coupling (5) from support for cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

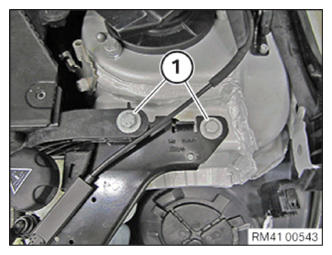

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

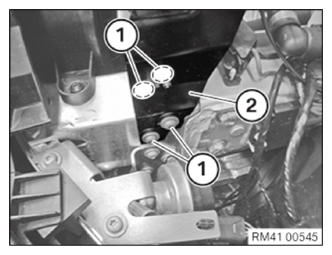

Release 4 screws (1) and remove support (2) for cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe the "Procedure for front panel installation".

Required reworking:

• Install the CROSS CONNECTION .
• Install the "LEFT HEADLIGHT STAND ".
