Replacing Left Or Right C-Pillar Reinforcement (Tail Panel And Rear Quarter Panel Removed) Rep-Rep-RAF5641-4121XXX - V.1 (Cooper 2-Door Hatchback, 2020-2023)
Read contents of BODY, GENERAL .
Procedure OBSERVE repair stage 3!
Use only an approved SPOT WELDER for repairs.
Following new body parts are required (see Electronic Parts Catalog):
- C-pillar
- C-pillar, inner
Removal:

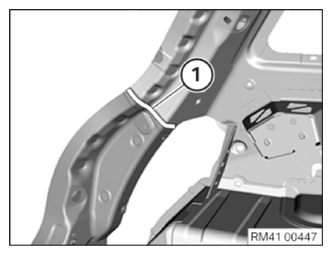

Open welded connections in area (1).

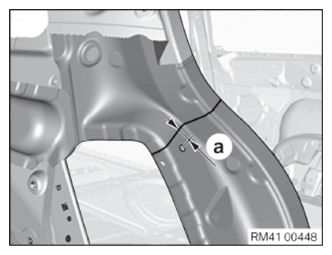

Mark severance cut in accordance with dimension and cut.
IMPORTANT:
Cut outer metal panel only.
Dimension a = approx. 20 mm from 8 mm dia. hole.
Remove reinforcement on C pillar.
Preparation of new part:
Mark and cut the severance cut on new part as per the severance cut on the vehicle.
Prepare REINFORCEMENT PLATE at severance cut.
Prepare new parts for joining by welding.
Adjust new parts in combination with tail panel and side panel.
NOTE:
Tail panel serves as a positioning aid in this operation and during installation. New parts are not welded to the tail panel during installation. New parts are joined to the tail panel with bonded rivets.
Installation:
Install new parts in combination with tail panel.

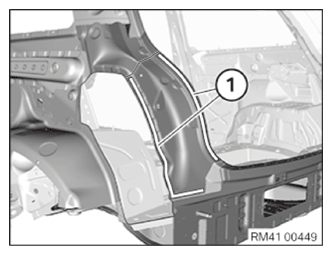

Weld new parts in areas (1).
NOTE:
Do not weld new parts to tail panel.
Weld new parts in area (1).
