Install the integrated power supply module (PDM)
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.

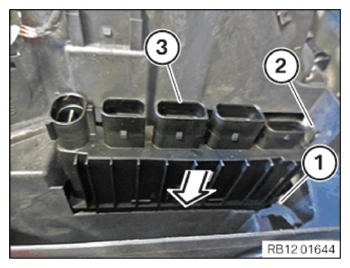

- Insert and install the integrated power supply module (3) in the direction of the arrow.
- Ensure that the locks (1) and (2) engage audibly.
- Connect and lock the connector (1).
- Make sure the connectors (1) engage audibly.
Follow-up work
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to INSTALLING THE TENSIONING STRUT .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING INTAKE PORT .
- Refer to INSTALLING SECOND UPPER BULKHEAD .
- Refer to INSTALLING THE BATTERY COVER .
- Refer to INSTALLING THE RIGHT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE LEFT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
