Inline plugs, 8-, 12-pin, System D2.5 (Cooper 4-door hatchback and 2-door hatchback, 2020-2023)

Special tools required:

• 61 0 303

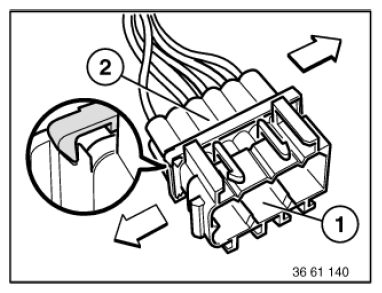

Shift upper section of connector (1) and lower section of connector (2) against each other in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

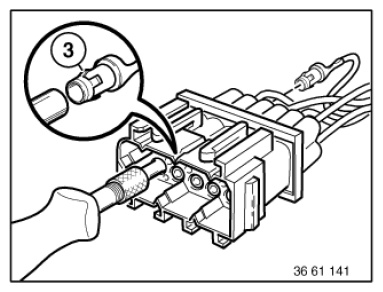

With special tool 61 0 303  , press down safety catch (3) of corresponding contact and pull out cable with contact.

Courtesy of BMW OF NORTH AMERICA, INC.
