In-line plugs, 20-pin, System D2.5 (Cooper 4-door hatchback and 2-door hatchback, 2020-2023)

Special tools required:

• 61 0 303

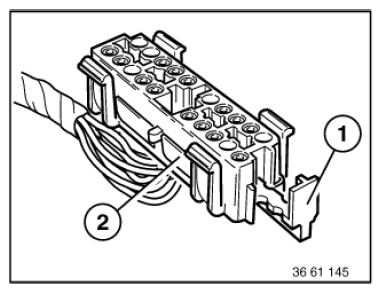

Pull locking slide (1) out of connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

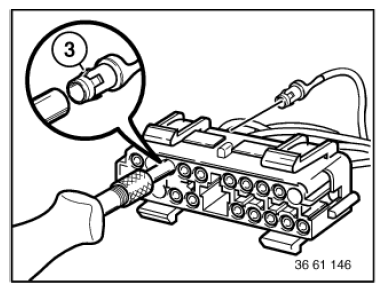

With special tool 61 0 303  press down safety catch (3) of corresponding contact and pull out cable with contact.

Courtesy of BMW OF NORTH AMERICA, INC.
