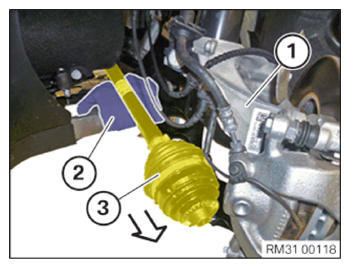

Remove left output shaft
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
It is paramount to replace the radial shaft seal each time the output shaft is removed.
It is paramount to replace the radial shaft seal each time the output shaft is removed.
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
NOTE:
RISK OF DAMAGE
Failure to comply with the specification.
Component damage.
Failure to comply with the specification.
Component damage.
- All specifications must be observed and complied with.
NOTE:
TECHNICAL INFORMATION
It is paramount to replace the radial shaft seal each time the output shaft is removed.
It is paramount to replace the radial shaft seal each time the output shaft is removed.
