Positioning the special tools on the table lift

Positioning of the special tools on the lifting table

Courtesy of BMW OF NORTH AMERICA, INC.

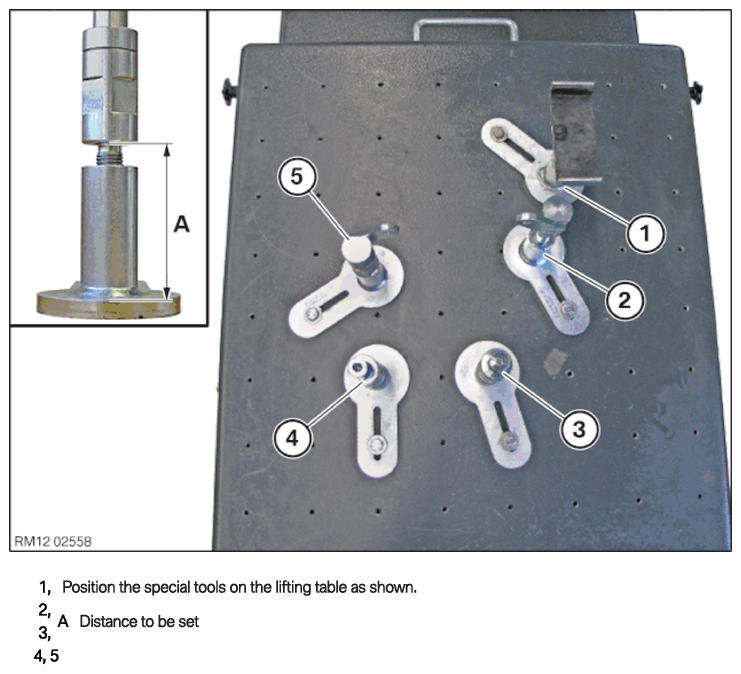

• Position special tools on the table lift as shown and adjust the distance A:

  (Coordinates: Indication refers to the upper right corner.)

  No.	Special tools	Coordinates	Distance A
  1	20, 30, 70	2/4	9.5 cm
  2	20, 2 357 221	5/3	15.2 cm
  3	20, 30, 2 357 222	7/4	11.7 cm
  4	20, 30, 2 357 222	7/6	10 cm
  5	20, 2 357 221	5/7	10.6 cm

  The numbering will be retained on the next images.
