61 31 362 Removing and installing (replacing) receiver for radio remote control (Cooper 4-door hatchback, 2020-2023)

IMPORTANT: Read and comply with notes on protection AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Preliminary work needed:

Removal:

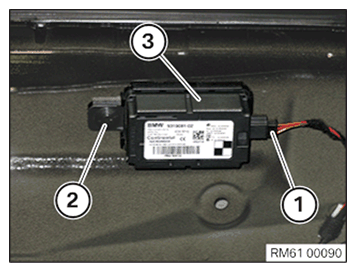

Unlock and disconnect the connector (1).

Release the expanding rivet (2) and remove the receiver (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

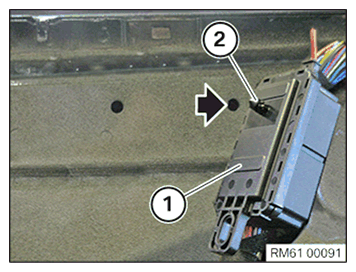

NOTE: Position the receiver (1) so that the positioning pin (2) is aligned with the associated bore.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the receiver (3) and secure it with the expanding rivet (2).

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
