Socket housing (radio connector), Hybrid System MQS/MPQ (Cooper 4-door hatchback and 2-door hatchback, 2020-2023)

Special tools required:

• 61 0 314

Manufactured by AMP:  The following contact types without single conductor seal can be fitted in the connector housings:

• MQS (Micro Quadlock System)
• MPQ, width 2.8 mm (Micro Power Quadlock)
• MPQ, width 5.2 mm (Micro Power Quadlock)

Removing MPQ contacts from radio connector:

Press lock (1) in arrow direction.

Detach secondary lock (2) from radio plug.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed special tool 61 0 314  (61 1 135) past side of contact.

Press special tool 61 0 314  (61 1 135) in arrow direction.

Pull wire (1) with socket contact out of radio connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing MQS contacts from contact carrier:

Press lock (1) in arrow direction and pull housing (2) out of radio connector.

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1) in arrow direction. Pull contact carrier (2) out of housing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down safety catch (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in arrow direction as far as secondary lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down safety catch in secondary lock (1) again. Pull wire with socket contact (2) out of contact carrier (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing MPQ contacts from contact carrier:

Remove contact carrier (1) with MQS contacts from radio connector.

Raise lock (2) on radio connector.

Pull contact carrier (3) out of radio connector.

Courtesy of BMW OF NORTH AMERICA, INC.

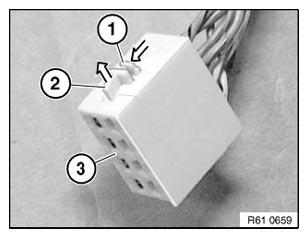

Press lock (1) in arrow direction.

Pull secondary lock (2) in arrow direction completely out of contact carrier (3).

Courtesy of BMW OF NORTH AMERICA, INC.

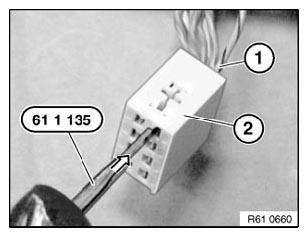

Press special tool 61 0 314  (61 1 135) on inside of contact into contact carrier (2).

Pull wire with socket contact (1) out of contact carrier (2).

Courtesy of BMW OF NORTH AMERICA, INC.
