64 22 235 Removing and installing (replacing) center right fresh air grille (Cooper 4-door hatchback and Cooper 2-door hatchback, 2020-2023)

Preliminary work needed:

• Remove CENTRAL INSTRUMENT .

REMOVAL:

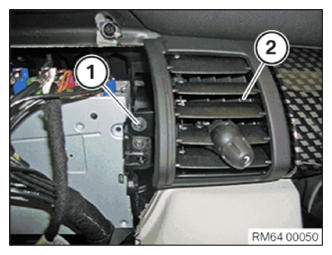

Remove screw (1).

Detach fresh air grille (2) forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Courtesy of BMW OF NORTH AMERICA, INC.

Engage fresh air grille (2) in dashboard.

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install CENTRAL INSTRUMENT .
