Wiring harness repair kit 4.0 (61 13 4 470 939) and associated special tools

The applicable BMW parts catalogue offers a repair kit for repairing wiring harnesses .

In addition to the various bushing housings, butt connectors (with heat-shrink tubing) and bushing contacts with cables, this kit also includes storage space for existing special tools.

Wiring harness repair kit 4.0 (61 13 2 470 939)

Scope of delivery:

Item 1 (filled) kit boxes for repair lines with and without single conductor seal
Item 2 (filled) kit boxes for the bushing housings
Item 3 (empty) kit box (61 13 5 A09 485 ) for existing release tools
Item 4 (empty) kit box (61 13 5 A09 476 ) for existing special tools for wiring harness repairs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A card is enclosed to help better assign and identify the bushing housings. It contains information on the bushing contacts with cables (repair cables) and the release tools for the secondary and primary locking devices. There are contact bushings for which both locking forms are not relevant.

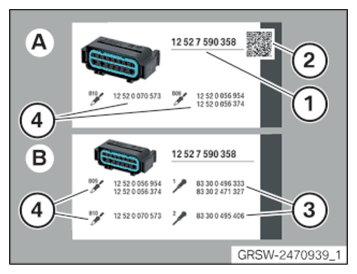

Printed circuit board for bushing housing

Item A front of card
Item B rear of card
Item 1 BMW order number for bushing housing
Item 2 QR code
Item 3 BMW order number for release tool
Item 4 BMW order number for contact bushing with cable

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: By scanning the QR code, the user is directly connected to the manufacturer's website and the following information is quickly displayed:

Illustration of bushing housing
Bushing housing can be rotated 360°
Associated release tools
A table with technical information on the bushing housing (type, number of poles, color etc.)
How-to-use video for the release tools (to download)

List of the special tools for the wiring harness repair kit 4.0

The special tools listed below are not included in the scope of delivery of the wiring harness repair kit 4.0 and may already be available or must be ordered separately.

For these special tools, both empty kit boxes (61 13 5 A09 476 and 61 13 5 A09 485 ) are included in the scope of delivery of the wiring harness repair kit 4.0.

Overview of the special tools for wiring harness repairs

Empty kit box (61 13 5 A09 476 ) for existing special tools for wiring harness repairs.

The special tools and their use are described in the service information .

Courtesy of BMW OF NORTH AMERICA, INC.

Order number	Description
83 30 2 467 488	Die (0.13 - 0.5 mm² and 0.5 - 1.5 mm² )
83 30 2 467 489	Die (1.5 - 2.5 mm² )
83 30 2 467 490	Die (3.5 - 6.0 mm² )
83 30 2 467 417	Gas soldering iron
83 30 0 494 159	Handle (optional for 83 30 0 496 849 )
83 30 0 496 849	Handle (optional for 83 30 0 494 159 )
83 30 2 407 379	Stripping tool for cable diameters 0.13 0.13 - 0.5 mm
83 30 2 221 122	Pliers (stripping pliers) for cable diameters 0.5 mm and higher

Overview of the release tools and the relevant service information

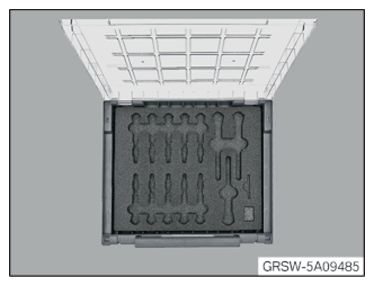

Empty kit box (61 13 5 A09 485 ) for existing release tools.

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool number	Order number	Description	Service Information bulletins
61 0 303 61 0 312 61 0 314 61 0 316 61 0 317 61 0 322 61 0 324	83 30 0 495 385 83 30 0 495 394 83 30 0 495 396 83 30 0 495 398 83 30 0 495 399 83 30 0 495 404 83 30 0 495 406	Release tool Release tool Release tool Release tool Release tool Release tool Release tool	02 05 05 (217)
61 0 325 61 0 326	83 30 0 495 578 83 30 0 496 676	Release tool Release tool	02 05 06 (294)
61 0 332 61 0 333	83 30 0 496 332 83 30 0 496 333	Release tool Release tool	02 03 08 (440)
	83 30 2 471 325 83 30 2 471 326 83 30 2 471 327 83 30 2 471 328 83 30 2 471 329 83 30 2 471 330 83 30 2 471 331 83 30 2 471 332 83 30 2 471 333	Release tool Release tool Release tool Release tool Release tool Release tool Release tool Release tool Release tool	02 02 19 (626)

NOTE: There is an existing tool set for the HF contacts (RTK031).

Order number HF contacts	Description	Special tool number Tool set	Order number Tool set	Description	Service Information bulletins
61 13 6 918 332 61 13 6 918 333 61 13 6 918 294 61 13 6 931 431	HF contact bushing HF pin contact HF contact bushing, angled HF pin contact, angled	61 4 280	83 30 0 496 880	Crimping tool	02 02 10 (622)
