Removing the trim on the left and right air duct

NOTE: Description is for left component only. Procedure on the right side is identical.

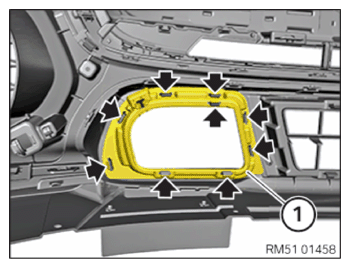

Removing the trim for the air duct

Release the trim (1) at the detents (arrows) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
