Install the impact absorber

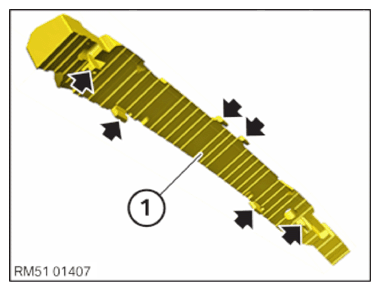

Check the impact absorber (1) and the snap-in lugs (arrows) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

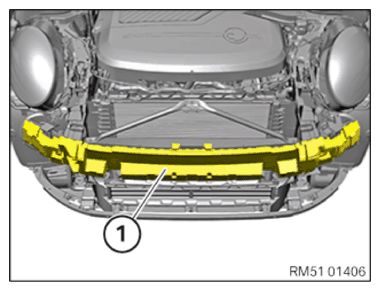

Carefully hook the impact absorber (1) at the bottom and then press it upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Notes on the active pedestrian protection are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: 41 00...PROCEDURE FOR VEHICLES WITH ACTIVE PEDESTRIAN PROTECTION AFTER AN ACCIDENT.

Check impact absorber 2 for damage.
Replace damaged impact absorber 2.
Replace pedestrian protection sensor if required.
After an accident, the pedestrian protection sensor1 must always be replaced.
Insert the pedestrian protection sensor 1 into the impact absorber 2.
The pedestrian protection sensor must be routed correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
