Removing the EKK (drive unit removed)
Removing the EKK (drive unit removed)

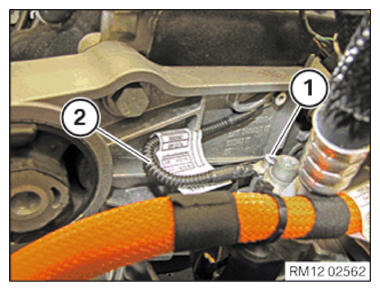

Loosen screw (1).
Remove the equipotential bonding line (2).
Courtesy of BMW OF NORTH AMERICA, INC.

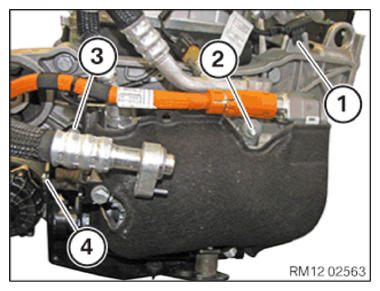

Loosen the cable bracket (1).
Loosen screws (2).
Release the nut (3).
Courtesy of BMW OF NORTH AMERICA, INC.

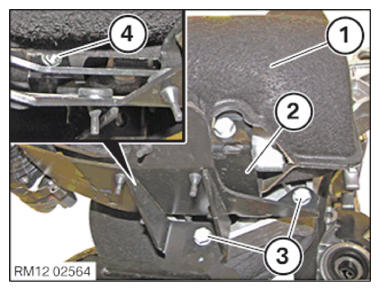

Loosen screw (4).
Loosen screws (3).
Remove the EKK (1) with the holder (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
