Remove the front left and right wheel arch trim
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the front wheel arch trim

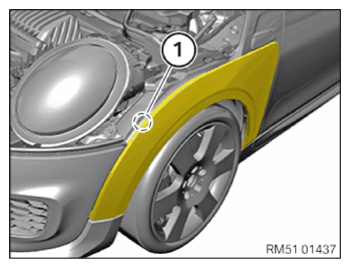

- Release the screw (1) from the engine compartment.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

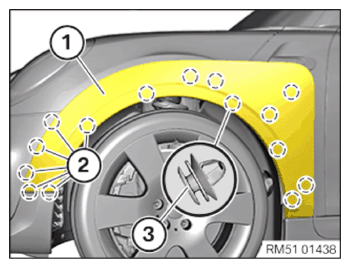

- Release the wheel arch trim (1) at the detents (2).
- Release the wheel arch trim (1) at the clips (3).
- Carefully feed out and remove the front wheel arch trim (1) at the door sill trim panel. Pull the door sill trim panel slightly outwards.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
