Installing the cover cap
Installing the cover cap

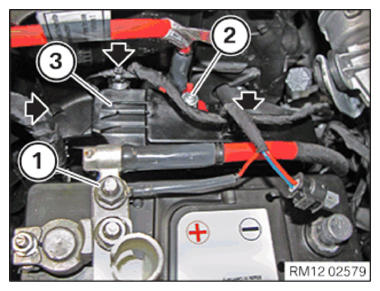

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the cover cap (3).
Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
Cover cap on EDME control unit
2.5 Nm
Tighten nut (1).
TIGHTENING TORQUES SPECIFICATION
Positive wire to positive terminal
M8
15 Nm
Clip in the wiring harness mountings (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.
