Check/add the oil level in the electric machine transmission
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

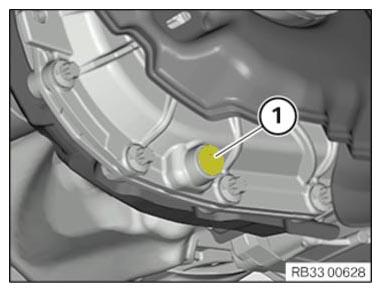

- Release oil drain plug (1).
- Drain and dispose of transmission oil.
- Replace sealing ring of the oil drain plug (1).
Parts: Sealing ring
- Clean oil drain plug (1), screw in and tighten.TIGHTENING TORQUES SPECIFICATION
Oil drain plug on electric machine transmission M16x1.5
Replace the sealing ring.35 Nm - Measure transmission oil.TECHNICAL DATA SPECIFICATION

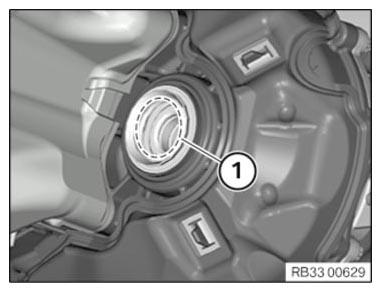

Oil capacity, electric machine transmission Oil capacity 500 ml - Use a suitable auxiliary material (e.g. a syringe) to fill transmission oil through the opening (1) for the output shaft into the electric machine transmission.
