Installing the trim on the bumper panel

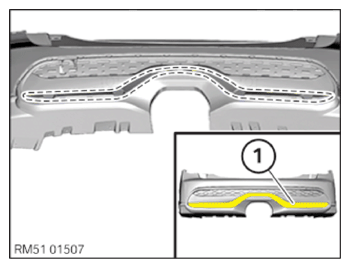

• Check all detents of the trim (1).

  Check trim (1) for damage and, if necessary, replace it.

• Position the trim (1) correctly and engage it at all detents along the dashed line.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING THE LEFT AND RIGHT TAIL LIGHTS .
