Remove the trim at the bottom of the aperture

Preliminary work

• Refer to REMOVING THE REAR PANEL FROM THE FRONT SEAT BACKREST .

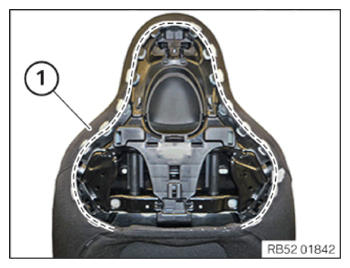

• Detach the seat cover (1) in the marked area.

  Courtesy of BMW OF NORTH AMERICA, INC.

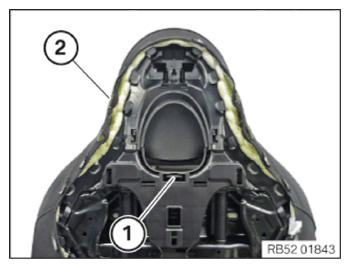

• Unclip the clip (1) with the special tool 2 298 505 .
• Tilt the seat cover (2) forward.

  Courtesy of BMW OF NORTH AMERICA, INC.

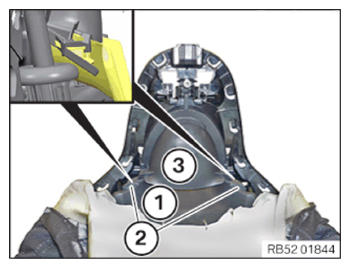

• Loosen the trim (1) from the detents (2) and remove from the trim (3).

Courtesy of BMW OF NORTH AMERICA, INC.
