Removing and installing/replacing top dashboard storage compartment (Cooper Convertible)

Preliminary work needed  :

• Remove the center right FRESH AIR GRILLE .

Removal:

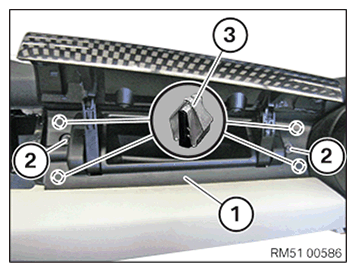

Open storage compartment (1) and release the screws (2).

Remove the storage compartment (1) inwards from the clamps (3).

Close and feed out storage compartment (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert storage compartment (1) and clip it in the dashboard with the clamps (3).

Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the center right FRESH AIR GRILLE .
