Z7 Front power distribution box

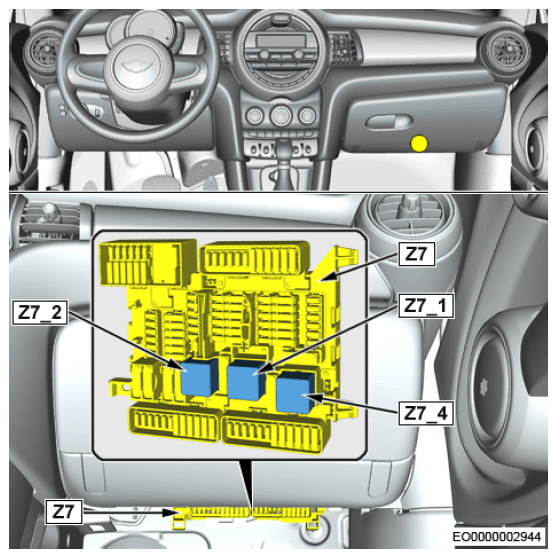

Fig 1: Z7 Front Power Distribution Box Fuse/Relay ID's & Location (1 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

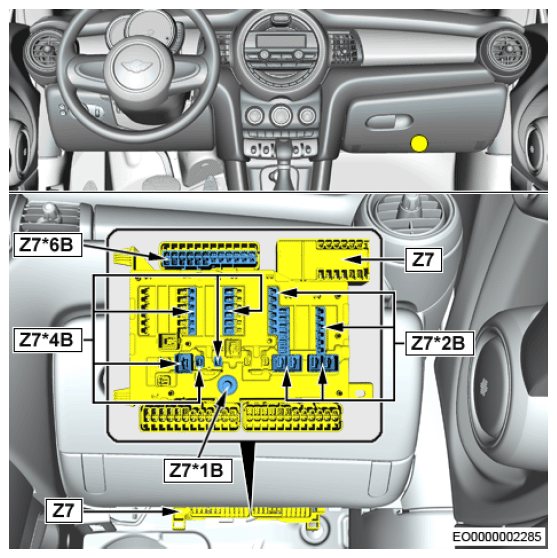

Fig 2: Z7 Front Power Distribution Box Fuse/Relay ID's & Location (2 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

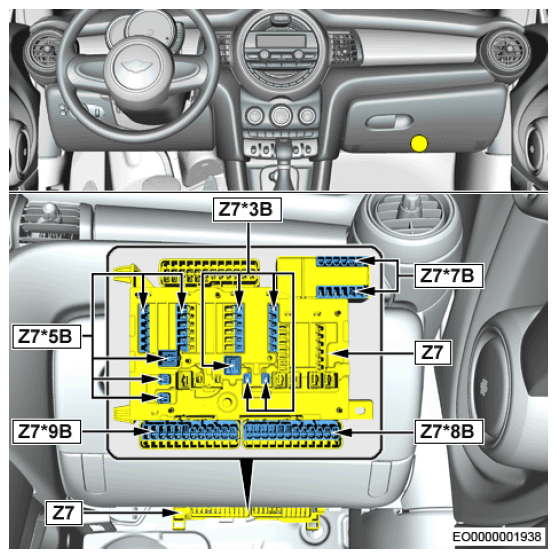

Fig 3: Z7 Front Power Distribution Box Fuse/Relay ID's & Location (3 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

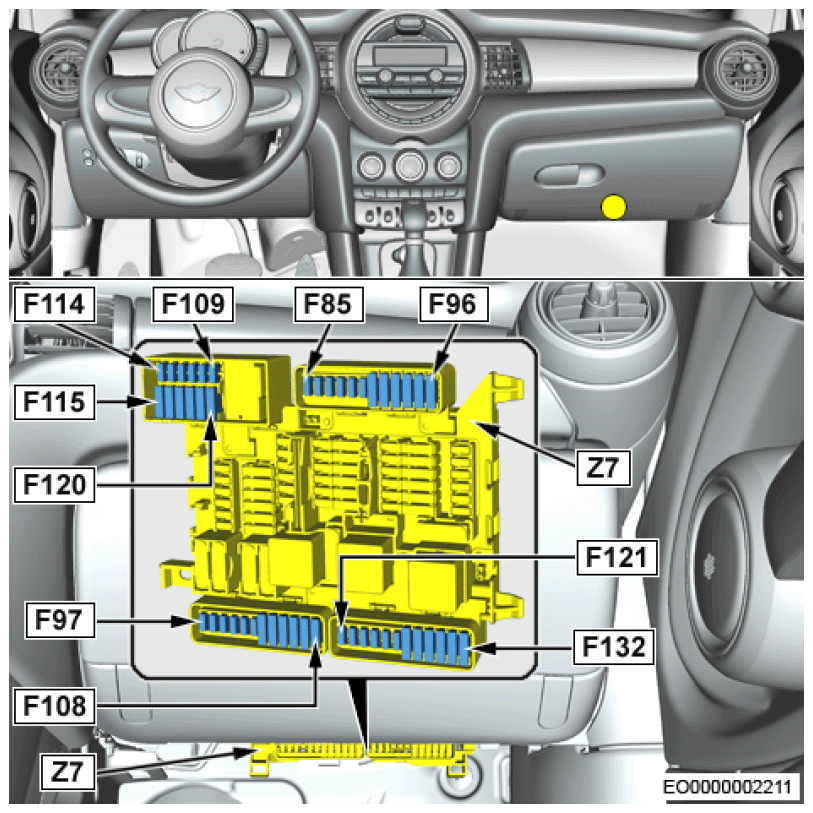

Fig 4: Z7 Front Power Distribution Box Fuse/Relay ID's & Location (4 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

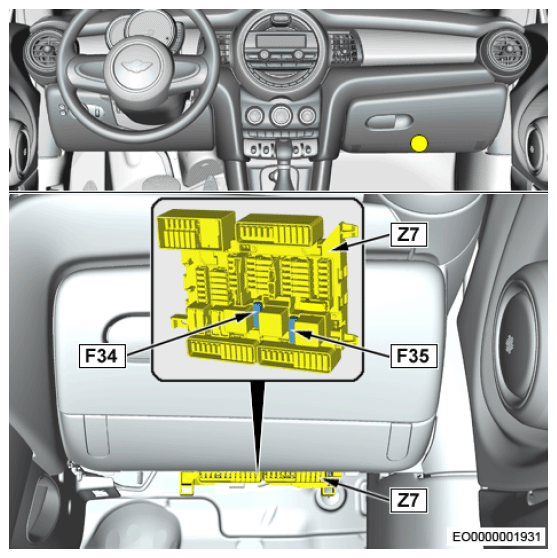

Fig 5: Z7 Front Power Distribution Box Fuse/Relay ID's & Location (5 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

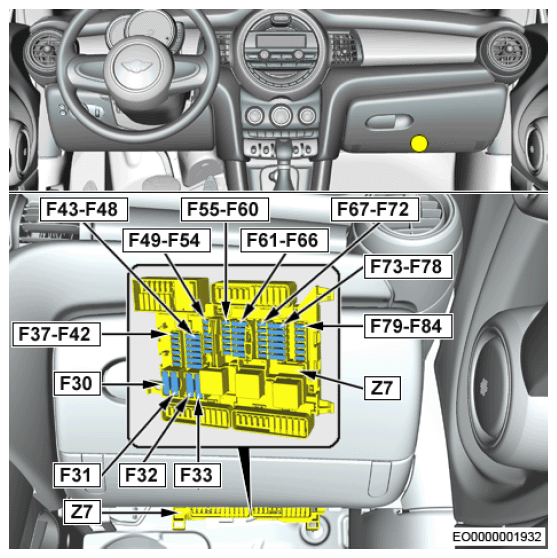

Fig 6: Z7 Front Power Distribution Box Fuse/Relay ID's & Location (6 Of 6)

Courtesy of BMW OF NORTH AMERICA, INC.
