Fuse And Relay Location -- Cooper F54, F55, F56 (Except PEV), & F60 (Except PHEV)
>>
Fuse And Relay Location - Cooper F54, F55, F56 (Except PEV), & F60 (Except PHEV)
>>
Z3 Fuse box
Z3 Fuse box

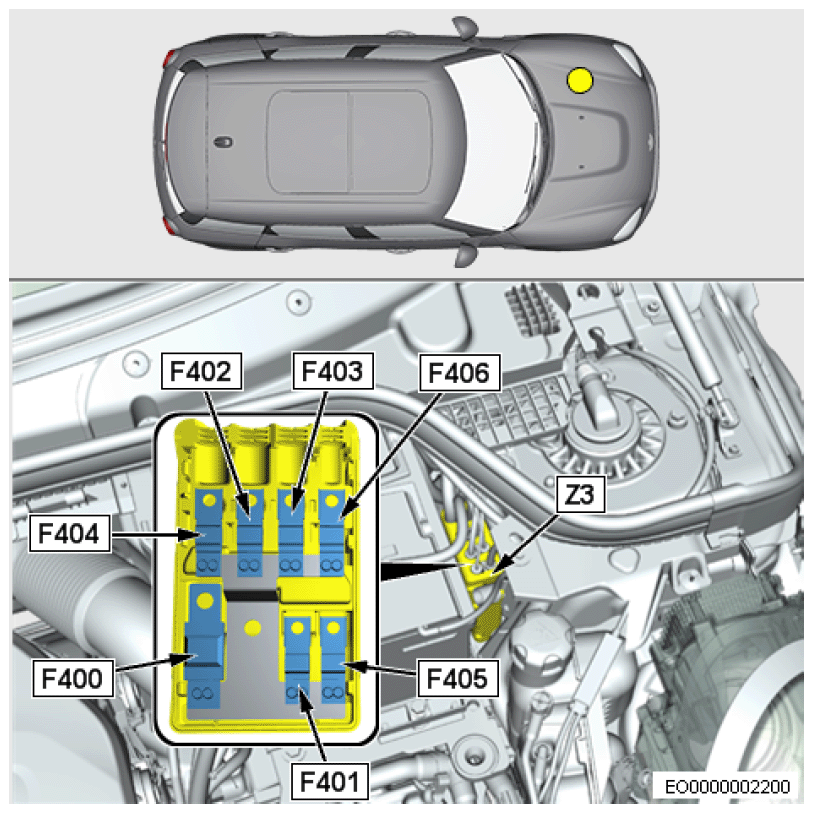

Fig 1: Z3 Fuse Box Fuse/Relay ID's & Location (1 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

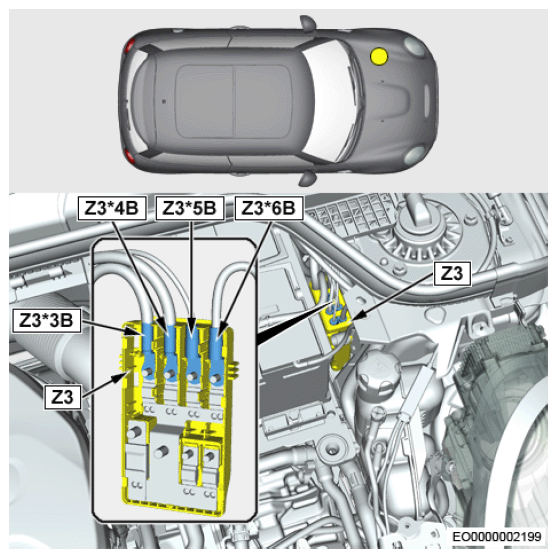

Fig 2: Z3 Fuse Box Fuse/Relay ID's & Location (2 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

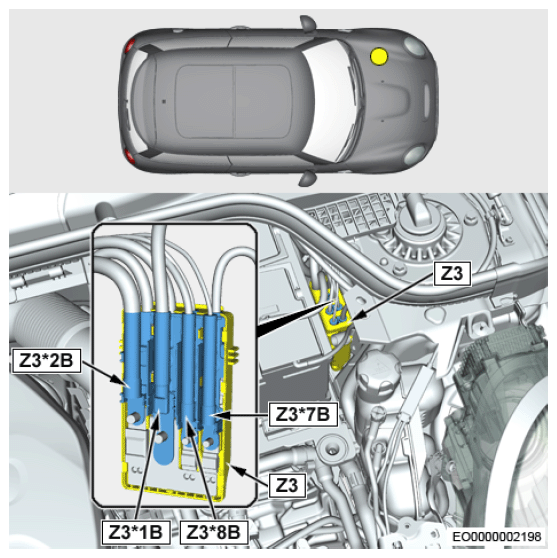

Fig 3: Z3 Fuse Box Fuse/Relay ID's & Location (2 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
