51 71 447 Removing and installing/replacing left or right door sill insert (Cooper JCW GP 2-door hatchback)

Preliminary work needed:

• Remove DOOR SILL TRIM PANEL .

Removal:

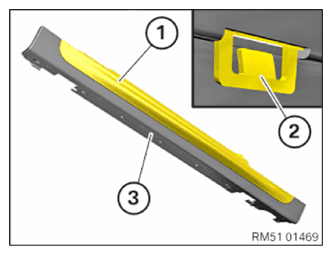

Release insert (1) on the detents (2) from the rear.

Guide the insert (1) upwards and out of the door sill trim panel (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Correctly position the insert (1) on the door sill trim panel (3) and lock into place at the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the DOOR SILL TRIM PANEL .
