Body Equipment -- Repair (2 Of 2) Cooper (F55 & F56)
>>
51 71 Gaskets And Loose Body Parts
>>
51 71 390 Removing and installing/replacing the bracing plate on rear axle (Cooper JCW GP 2-door hatchback)
>>
Removing rear tunnel connecting support
Removing rear tunnel connecting support
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.

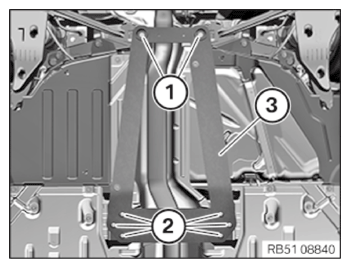

Release screws (1) and (2).
Remove connecting support (3).
Courtesy of BMW OF NORTH AMERICA, INC.
