Installing the rear side trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.

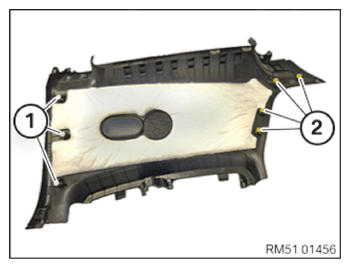

- Check that the white clips (1) and the yellow clips (2) are not damaged or missing.
Damaged or missing clips (1) and (2) must be replaced.

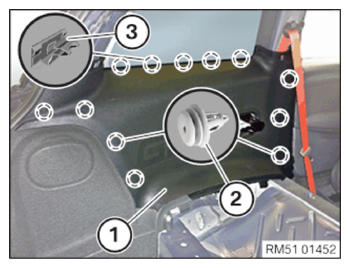

- Carefully install the rear side trim panel (1) and clip it in at the clips (2) and the clamps (3).
- Ensure correct fit of rear side trim panel (1) on front edge protection and the tailgate seal.

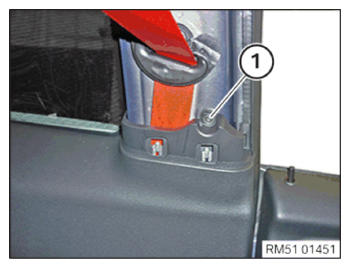

- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Side trim panel to body | ||
|---|---|---|
| Oval-head screw | tightening torque | 2.4 Nm |

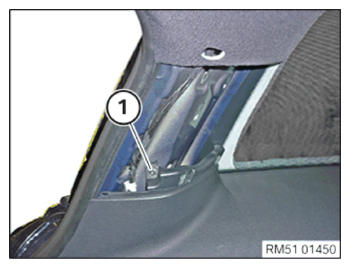

- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Side trim panel to body | ||
|---|---|---|
| Oval-head screw | tightening torque | 2.4 Nm |
Follow-up work
- Refer to INSTALLING THE C-PILLAR TRIM PANEL .
- Refer to INSTALLING THE UPPER B-PILLAR TRIM PANEL .
- Refer to INSTALLING THE STRUT IN CARGO AREA .
- Refer to INSTALLING FRONT LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
