REP-TAT-P-5113-02 Installing the frame for the front ornamental grille

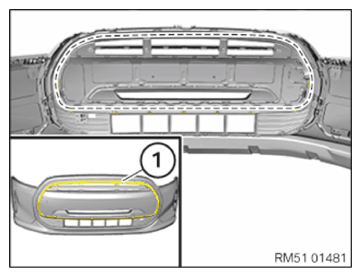

• Check all detents at the frame (1).

  If there are faulty detents, replace the frame (1).

• Position the frame (1) correctly and engage it at all detents along the dashed line.
