65 12 071 Removing and installing or replacing amplifier (Cooper 4-door hatchback models, 2020-2023)

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection).

Preliminary work needed:

REMOVAL:

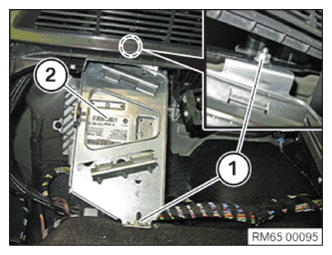

Unscrew nuts (1).

Feed out amplifier with holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

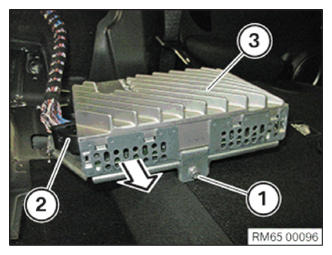

Remove screw (1).

Unlock and disconnect connector (2).

Remove amplifier (3) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

In Harman Kardon version, perform VEHICLE PROGRAMMING AND CODING .

INSTALLATION:

NOTE: Lugs (1) must be correctly slid into guide (2).
Check that amplifier (3) is securely seated.

Courtesy of BMW OF NORTH AMERICA, INC.

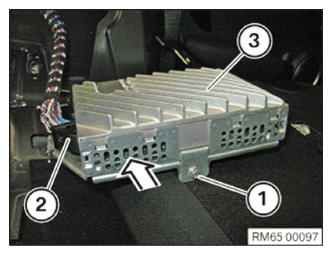

Install amplifier (3) in arrow direction.

Tighten screw (1).

Join and lock connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in amplifier with holder (2).

Tighten down nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
