61 31 673 Replacing switch for electromechanical parking brake (Cooper SE Electric 2-door hatchback)
>>
Replace the parking brake button
Replace the parking brake button

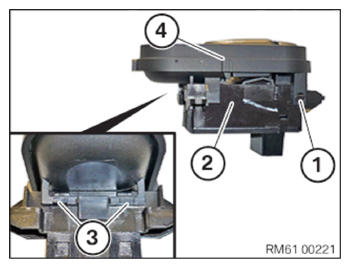

Release the detents
(1)
on both sides.
Loosen the detents
(3)
.
Remove the switch trim
(4)
from the parking brake button
(2)
.
Replace parking brake button
(2)
.
Parts:
Parking brake button
Position the parking brake button
(2)
correctly on the switch trim
(4)
and snap-in to the locks
(1)
and
(3)
.
