63 31 320 Replacing LED module in front door trim panel on left or right (Cooper 4-door hatchback models, 2020-2023)

Preliminary work needed:

Removal:

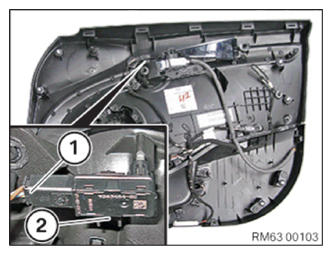

Door opener

Disconnect the connector (1).

Release the LED module for door trim panel (2) from the holder.

G15443909Courtesy of BMW OF NORTH AMERICA, INC.

Door opener

Release the fiber-optic conductor (2) on the detent by means of a screwdriver (3 mm blade).

Pull the fiber-optic conductor (2) out of the LED module for door trim panel (1).

G11650070Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Disconnect the connector of the LED module for the door trim panel (1).

Carefully release the fiber-optic conductor (2) from the holder.

Release the LED module for door trim panel (2) from the holder.

G13825798Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Release the fiber-optic conductor (2) on the detent by means of a screwdriver (3 mm blade).

Pull the fiber-optic conductor (2) out of the LED module for door trim panel (1).

G11650072Courtesy of BMW OF NORTH AMERICA, INC.

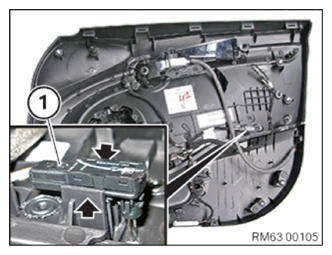

Door trim panel

Disconnect the connector on the LED module for the door trim panel (2).

Release the LED module for the door trim panel (1) along with the fiber-optic conductor from the holder.

G15443913Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Release the fiber-optic conductor (2) on the detent by means of a screwdriver (3 mm blade).

Pull the fiber-optic conductor (2) out of the LED module for door trim panel (1).

G11650074Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Door opener

Join the fiber-optic conductor (2) in the LED module for the door trim panel (1).

NOTE: Ensure the fiber-optic conductor (2) is correctly fitted and engaged in the LED module for the door trim panel (1).
G11650070Courtesy of BMW OF NORTH AMERICA, INC.

Door opener

Feed in the LED module for the door trim panel (2) along with the fiber-optic conductor into the holder and the door trim panel.

Connect the connector (1) to the LED module for the door trim panel (2).

G15443909Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Join the fiber-optic conductor (2) in the LED module for the door trim panel (1).

NOTE: Ensure the fiber-optic conductor (2) is correctly fitted and engaged in the LED module for the door trim panel (1).
G11650072Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Feed in the LED module for the door trim panel (2) along with the fiber-optic conductor (1) into the holder and the door trim panel.

Connect the connector to the LED module for the door trim panel (2).

NOTE: Ensure correct fit of the fiber-optic conductor (1) and the LED module for the door trim panel (2) in the holder and the door trim panel.
G13825798Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Join the fiber-optic conductor (2) in the LED module for the door trim panel (1).

NOTE: Ensure the fiber-optic conductor (2) is correctly fitted and engaged in the LED module for the door trim panel (1).
G11650074Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Feed in the LED module for the door trim panel (1) along with the fiber-optic conductor into the holder.

Connect the connector to the LED module for the door trim panel (1).

NOTE: Ensure the fiber-optic conductor and the LED module for the door trim panel are correctly fitted in the holder and the door trim panel.
G15443913Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
