Installing the rear fog light

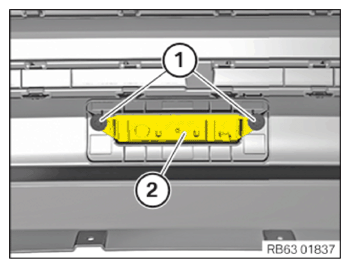

- Position rear fog light (2) in the bumper.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Rear fog light to bumper cover | ||
| Screw | Tightening torque | 1.5 Nm |
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING THE LEFT AND RIGHT TAIL LIGHTS .
