Installing the instrument cluster (KOMBI)

NOTE: RISK OF DAMAGE
Damage to the instrument cluster (KOMBI) or the head unit
A ground offset can occur when releasing and connecting the cables. This can generate currents that render the instrument cluster (KOMBI) or the head unit unusable.

When releasing: First release the APIX data cable (blue).
When connecting: Connect the APIX data cable (blue) last.

Courtesy of BMW OF NORTH AMERICA, INC.

If installed: Lastly, connect and lock the connector.

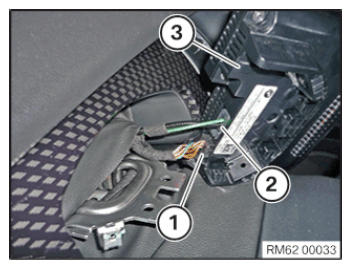

Connect and lock the connector (1) and (2) at the instrument cluster (KOMBI) (3).

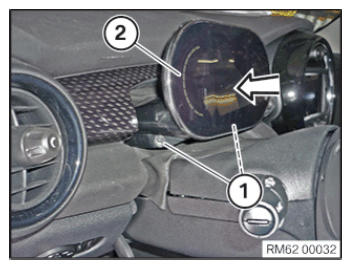

Guide in and position the instrument cluster (2) in the arrow direction.
Tighten screws (1) left and right.

TIGHTENING TORQUES SPECIFICATION

Instrument cluster (KOMBI) to support
Screw	tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
