Replacement: Remount DME control unit and the integrated supply module (PDM)

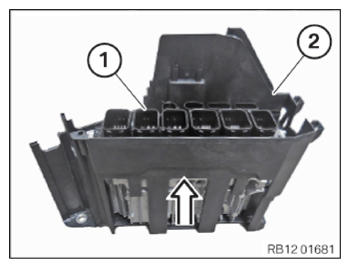

• Feed DME control unit (1) out of the electronics box in direction of arrow (2) and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

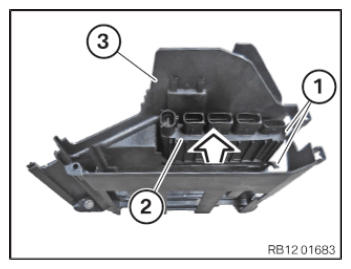

• Unlock the locks (1).
• Feed integrated supply module (2) out of the electronics box in direction of arrow (3) and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

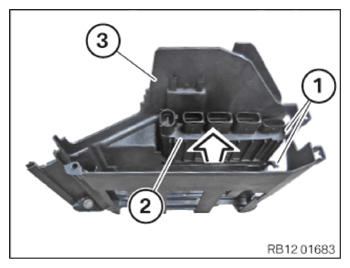

• Feed integrated supply module (2) into the new electronics box (3) in direction of arrow and install.
• Ensure that the locks (1) engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed DME control unit (1) into the new electronics box (2) in direction of arrow and install.

Courtesy of BMW OF NORTH AMERICA, INC.
