Install E-box
Precondition
Battery ground lead is disconnected.
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.

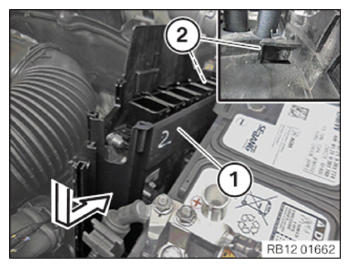

- Feed in the E-Box (1) into the guide (2) in the arrow direction and install.

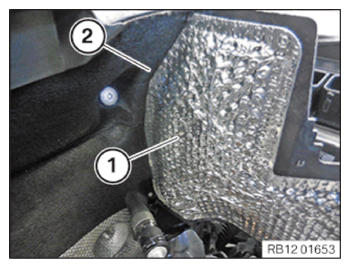

- Ensure that the E-Box (1) is positioned correctly on the cowl (2).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| E-box to battery tray | |
|---|---|
| M8x16 | 15 Nm |

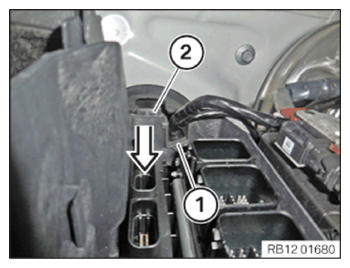

- Feed the holder (1) into the E-Box (2) in the arrow direction and install.
- Make sure the holder (1) engages audibly.

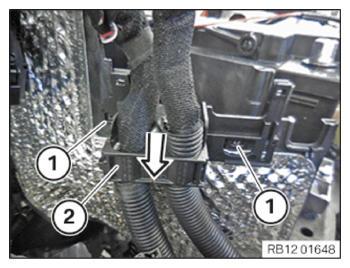

- Feed in and install the wiring harness section (2) of the engine in the arrow direction.
- Ensure that the locking mechanisms (1) engage audibly.

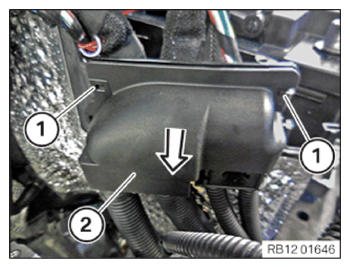

- Feed in and install the wiring harness section (2) of the Valvetronic servomotor in the arrow direction.
- Ensure that the locking mechanisms (1) engage audibly.
- Feed in the wiring harness section (3) for the injectors and ignition coils in the arrow direction and install.
- Make sure the locking mechanism (2) engages audibly.
- Insert and install the positive battery cable (1).
- Connect all connectors (1) and lock.
- Ensure that the connectors (1) engage audibly.

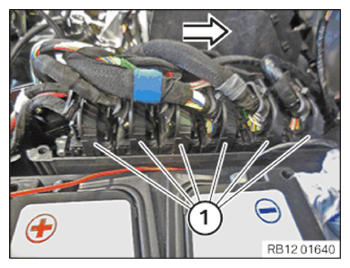

- Connect and lock all connectors (1) in the arrow direction.
- Ensure that the connectors (1) engage audibly.
- Connect connectors (1) and lock.
- Make sure the connector (1) engages audibly.

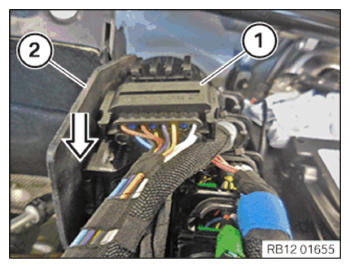

- Feed the connector (1) into the E-Box (2) in the arrow direction and install.

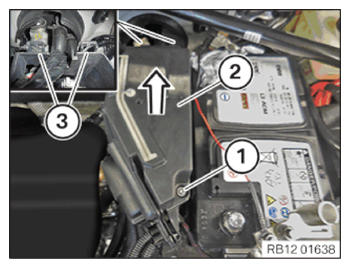

- Feed the cover (2) into the guides (3) in the arrow direction and install.
- Ensure that the cover (2) engages audibly into the guides (3).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Cover panel to E-box | ||
|---|---|---|
| RF5x26.5 | Tightening torque | 2.5 Nm |

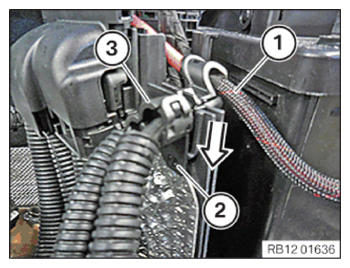

- Insert and install the positive battery cable (2) on the holder (3).
- Insert and install the battery positive terminal (1).
- Tighten the battery positive terminal (1).
TIGHTENING TORQUE SPECIFICATIONS
| Positive battery terminal to battery | ||
|---|---|---|
| Nut M6 | Tightening torque | 5 Nm |
Follow-up work
- Refer to INSTALLING THE TENSIONING STRUT .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING INTAKE PORT .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to INSTALLING SECOND UPPER BULKHEAD .
- Refer to INSTALLING THE BATTERY COVER .
- Refer to INSTALLING THE RIGHT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE LEFT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
