Installing both the holders on the EME

TIGHTENING TORQUE SPECIFICATIONS

cable clip to the electrical machine electronics
M6 8 Nm

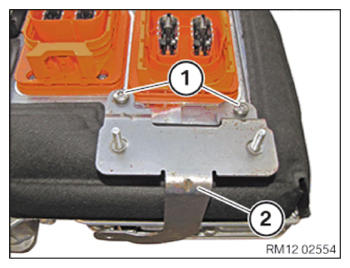

G15428867Courtesy of BMW OF NORTH AMERICA, INC.
TIGHTENING TORQUE SPECIFICATIONS

cable clip to the electrical machine electronics
M6 8 Nm

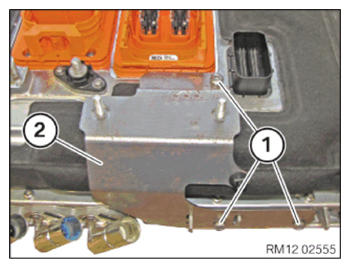

G15428868Courtesy of BMW OF NORTH AMERICA, INC.
