Remove electrical machine

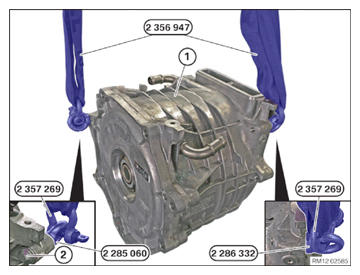

- Screw the special tools 2 286 332 into the electrical machine (1) up to the stop.
- Secure the special tool 2 285 060 with screw (2) (M8x55) onto the electrical machine (1) .
- Secure the special tool 2 356 947 with the special tool 2 357 269 onto the special tools 2 286 332 and 2 285 060 .
- Release the electrical machine (1) from the lifting table.
- Lift the electrical machine (1) .
