Installing the Vehicle Sound Generator (VSG) at the rear with the holder

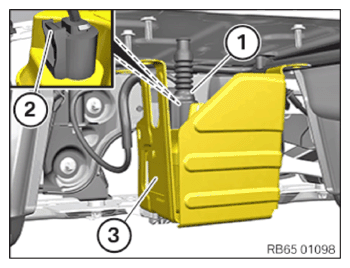

- Position the Vehicle Sound Generator (VSG) (3) with the holder.
- Connect connectors (2) and lock.
- Slide the rubber grommet (1) correctly towards the bottom on to the connector (2).

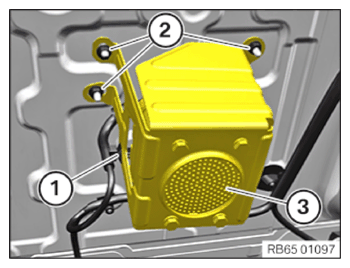

- Slide the Vehicle Sound Generator (VSG) (3) upwards with the holder and position it correctly.
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Holder of VSG to the body/VSG to the holder | ||
| M6X20 | tightening torque | 6 Nm |
| M6X12 | tightening torque | 6 Nm |
| Hexagon nut | tightening torque | 6 Nm |
- Clip in the cable clip (1).
Follow-up work
- Refer to INSTALLING THE DIFFUSER .
