Installing the Vehicle Sound Generator (VSG) with the holder

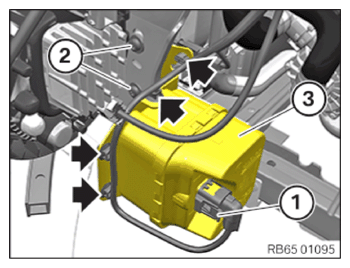

- Feed in and install the Vehicle Sound Generator (VSG) (3) with the holder
- Tighten the screws (2).
TIGHTENING TORQUES SPECIFICATION
| Holder of VSG to the body/VSG to the holder | ||
| M6X20 | tightening torque | 6 Nm |
| M6X12 | tightening torque | 6 Nm |
| Hexagon nut | tightening torque | 6 Nm |
- Connect connectors (1) and lock.
- Clip in the cable bracket (arrows).
Follow-up work
- Refer to INSTALLING THE FRONT WHEEL ARCH COVER .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
