51 47 030 Removing and installing/replacing (inside) rear left or right entrance cover strip (Cooper 4-door hatchback models, 2020-2023)

Special tools required:

• 00 9 325

When carrying out repair work on trim panels, make sure that the sensitive surfaces are not scratched or damaged.

Preliminary work needed:

• Partially remove REAR SEAT .

Removal:

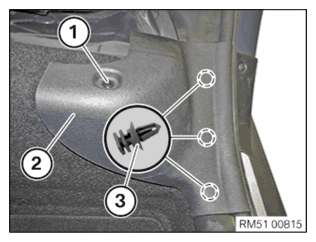

Release expanding rivet (1) from door sill cover strip (2).

Carefully lever out rocker panel trim (2) from clips (3) using special tool 00 9 325  and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement

Remount clips (3).

Carefully engage rocker panel trim (2) into the clips (3).

Secure expanding rivet (1) of door sill cover strip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install REAR SEAT .
